Alignimals MF470
Brand:Alignimals

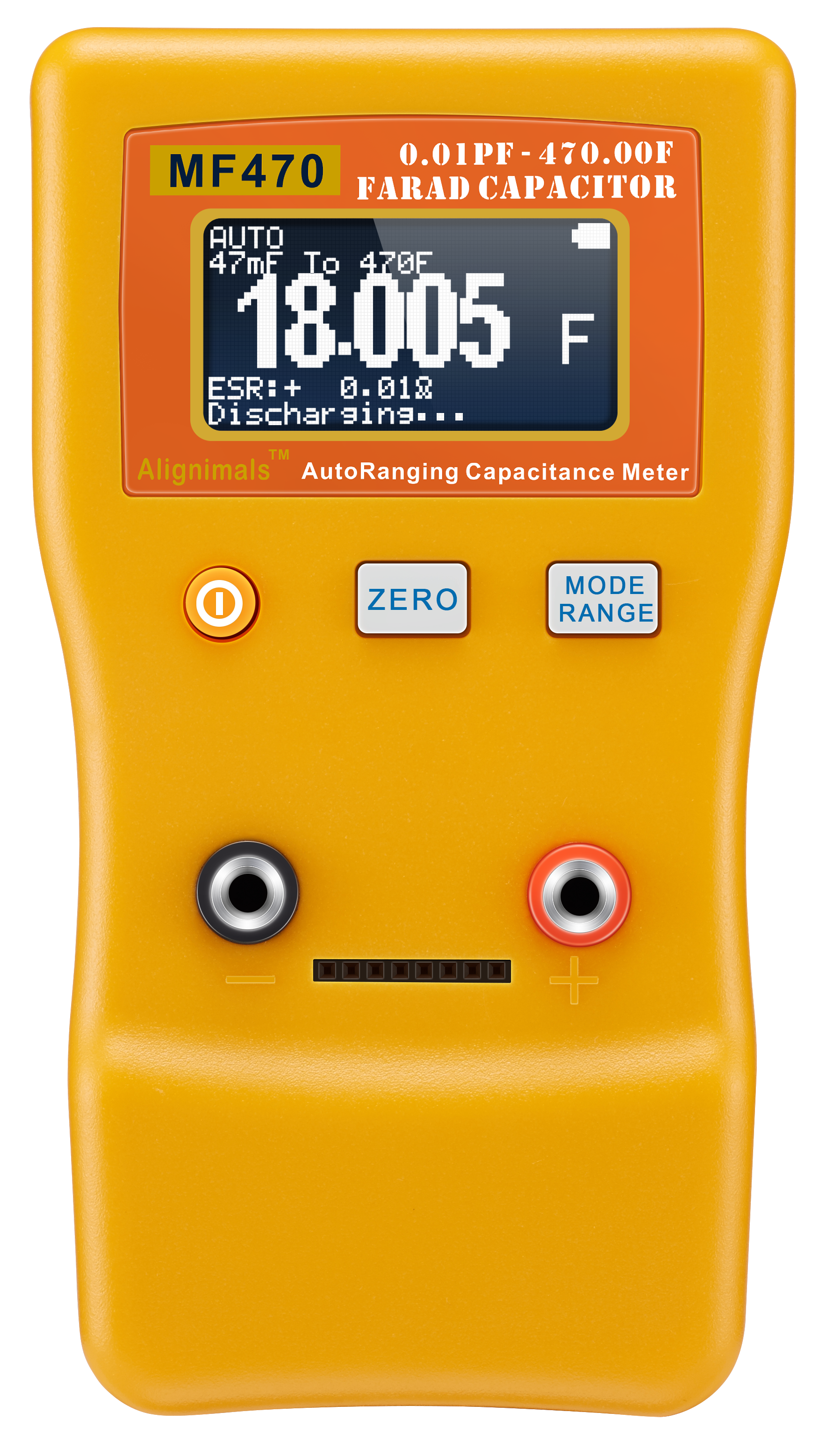

Alignimals MF470 automatic ranging capacitance meter.
Using a 128X64 dot matrix LCD display, it can display 5 digits readings. The measurement range is large, with a capacitance of 0.01pF to 470F (470,000,000uF). New Farad (supercapacitor) measurement range of 47mF to 470F. Provide a wide range of applications from DIY enthusiasts to professional engineers. MF470 has the characteristics of fast reading speed and accuracy of up to 1%. Reading 2200uF only takes about 0.2s. Capacitance tolerance estimation, showing the percentage deviation between the nominal value and the actual value. The internal resistance ESR value of a capacitor can be estimated to determine its performance. It has PC software to support users for real-time data analysis and storage. Widely used in audio DIY testing, home appliance maintenance, engineer development and design, batch quality inspection of capacitors, analysis of capacitor characteristics, etc.
Features
1) Larger measuring range, MF470 can read up to 470F super capacitor and measure super capacitor’s ESR internal resistance, some super capacitor may have internal resistance up to 70ohm.
2) Meter for HIFI or automotive’s audio capacitors measuring.
3) E6 Tolerance estimation for 47nF to 47uF, and 47uF to 47mF, we can estimate the capacitor marking capacitance and provide a real time tolerance display.
4) Estimated ESR internal resistance displaying at 47uF to 47mF and 47mF to 470F range. Can have a rough estimation on the condition of the electrolytic capacitors
5) High voltage discharge notification, meter will try to discharge a capacitor if user doesn’t discharge before testing. *(WARNING! Strongly suggest user to discharge by suitable power resistor before testing, meter’s discharge function is not 100% guarantee high energy stored inside capacitor will not damage the meter!)
6) TYPE-C USB can used as external power source. (USB cable and charger is not included)
7) PC software can provide capacitance changing record and easy for QC pass and fail checking.
8) 2XAA batteries rather than using 9V.
9) Dot matrix LCD with backlight provide more user-friendly display.
10) Grounding terminal can reduce the environment noise for capacitance measurement.
